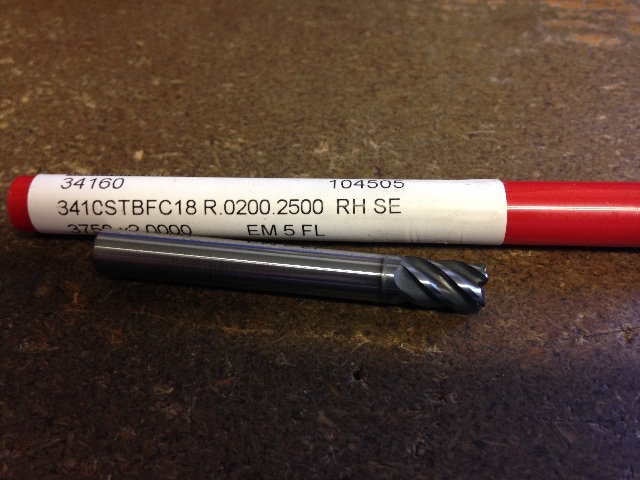

1/4" 5 FLUTE VARIABLE HELIX STUB LENGTH TiAlN .020"cr CARBIDE END MILL

$28.69
Details
  • Brand: Fullerton
  • Condition: New
  • SKU: 34160
  • Country of Manufacture: United States
  • Material: Solid Carbide
  • Type: 5 Flute
  • COATING: AlTiN/TiAIN
  • Coated: TiAlN
  • MPN: 34160
  • Flutes: 5
  • Cutting Diameter: 1/4"
  • Shank Diameter: 1/4"
  • Overall Length: 2"
  • End Type: Single End*Stub
  • Helix Angle: Variable
  • Radius: .020"
  • Quantity: 1

1/4" 5 FLUTE SINGLE END VARIABLE HELIX STUB LENGTH TiAlN .020" CORNER RADIUS CARBIDE END MILL
3/8" Flute Length
2" Overall Length
FC18 TiAlN COATED
1/4" Shank Diameter
.020" CORNER RADIUS
Made in USA
34160

Decimal Dimensions
Cutting Diameter: 0.2500
Cutting Flute Length: 0.3750
Shank Diameter: 0.2500
Overall Length: 2.0000
Radius: 0.0200
Metric Dimensions
Cutting Diameter: 6.35
Cutting Flute Length: 9.53
Shank Diameter: 6.35
Overall Length: 50.80
Radius: 0.51
Additional
Helix Angle: 40
End Type: Corner Radius
Weldon Flat: No
Length: Stub

1/4" 5 FLUTE VARIABLE HELIX STUB LENGTH TiAlN .020"cr CARBIDE END MILL
